Cur síos
Paraiméadair theicniúla

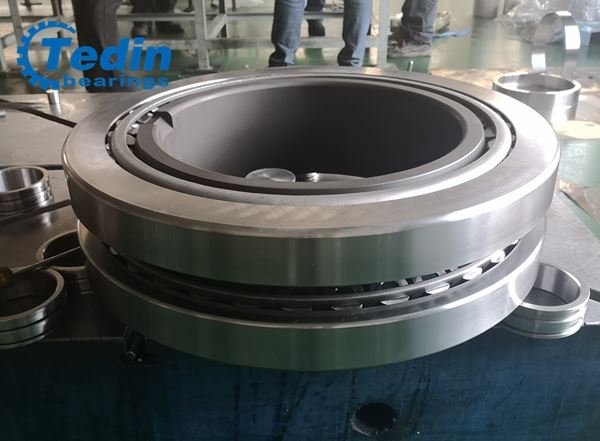

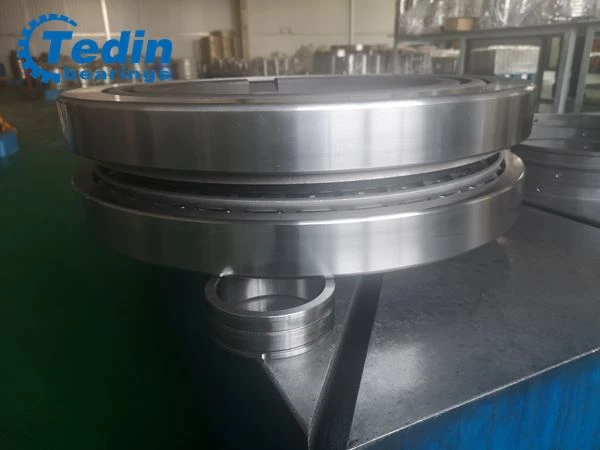

Imthacaí sorcóir barrchaolaithe Sraith Dúbailte TDI
Tá dhá fháinne sheachtracha (cupáin) agus fáinne istigh sraith dhúbailte amháin ag imthacaí sorcóir barrchaolaithe sraith dhúbailte TDI le dhá chomhthionól sorcóir agus cage (cón dúbailte), de ghnáth le spacer fáinne seachtrach, agus i socrú aghaidh le duine. Ach, de réir roinnt ócáidí, soláthraíonn Tedin imthacaí sorcóir barrchaolaithe sraith dhúbailte de chineál TDI gan spásálaí fáinne seachtrach.
| Cineál imthacaí | Imthacaí sorcóir barrchaolaithe TDI (as a chéile dúbailte, rás seachtrach dhá phíosa) |
| Eilimint rollta | sorcóir barrchaolaithe |
| Ábhar | GCr15, GCr15SiMn, cruach cás-chruaite G20Cr2Ni4A |
| Trastomhas istigh | 80mm- 1200mm |
Soláthraíonn Tedin cóireáil dromchla speisialta freisin do chupán nó cón imthacaí sorcóir barrchaolaithe sraith dhúbailte de réir riachtanais an chustaiméara.
Gnéithe imthacaí sorcóir barrchaolaithe sraith dhúbailte:
1. Saol tuirse feabhsaithe
2. Rásbhealaí críochnaithe Super
3. Fáinne istigh corónach, rásbhealach & rollóirí
4. Cumas ualachiompartha ard
Tá imthacaí sorcóir barrchaolaithe sraith dhúbailte oiriúnach le haghaidh ualaí troma gathacha agus aiseach.
5. Ualaí aiseach sa dá threo
Aimsíonn imthacaí sorcóir barrchaolaithe sraith dhúbailte an seafta sa dá threo le imréiteach aiseach sonrach nó réamhualach.
6. Iontaofacht oibriúcháin feabhsaithe
7. Comhsheasmhacht próifílí agus méideanna sorcóir
Déantar na rollóirí barrchaolaithe d'imthacaí sorcóir barrchaolaithe sraith dhúbailte a mhonarú de réir lamháltais chomh dlúth tríthoiseacha agus gheoiméadracha go bhfuil siad beagnach comhionann. Soláthraíonn sé seo an dáileadh ualaigh is fearr, laghdaíonn sé torann agus creathadh, agus cuireann sé ar chumas réamh-ualach a shocrú níos cruinne.
8. Ard-stiffness
Soláthraíonn imthacaí sorcóir barrchaolaithe sraith dhúbailte socrú imthacaí righin.
9. Creathadh torainn laghdaithe
Cuireann an dearadh deireadh sorcóir optamaithe agus an bailchríoch dromchla le próifíl logartamach ar an flange foirmiú scannán bealaithe chun cinn, rud a fhágann go bhfuil frithchuimilt níos ísle ann. Laghdaíonn sé seo freisin teas cuimilte agus caitheamh flange. Ina theannta sin, is féidir leis na imthacaí réamh-ualach a choinneáil níos fearr agus a reáchtáil ag leibhéil torainn níos ísle.
Feidhmchláir:
Aonaid laghdaithe fearas
Craenacha
Rollaí féilire
Innealra tionscail
Clibeanna Te: TDI Double Row Tapered Roller Bearings, an tSín, monaróirí, monarcha, saincheaptha, ar díol
Imthacaí sorcóir barrchaolaithe ar mhéid orlach dúbailte - cineál TDI
| Toisí teorann (mm) | Aifreann | Bearradh Uimh. | |||
| d | D | T | B | (KG) | |
| 31.75 | 69.012 | 39.705 | 39.182 | 0.71 | 14126D/14276 |
| 42.862 | 80.962 | 34.925 | 31.75 | 0.77 | 13169D/13318 |
| 44.45 | 80.962 | 34.925 | 31.75 | 0.74 | 13176D/13318 |
| 46.037 | 80.962 | 34.925 | 31.75 | 0.73 | 13182D/13318 |
| 50.8 | 93.264 | 50.013 | 53.188 | 1.4 | 375D/374 |
| 50.8 | 96.838 | 53.188 | 53.188 | 1.61 | 375D/372A |
| 55.562 | 96.838 | 51.298 | 53.188 | 2.05 | 389DE/382A |
| 63.5 | 112.712 | 60.325 | 60.325 | 2.59 | 39585D/39520 |
| 63.5 | 136.525 | 66.091 | 65.989 | 4.59 | 78251D/78537 |
| 63.5 | 140.03 | 66.09 | 65.989 | 4.83 | 78251D/78551 |
| 64.987 | 136.525 | 66.091 | 65.989 | 4.55 | 78255D/78537 |
| 64.987 | 140.03 | 66.091 | 65.989 | 4.91 | 78255D/78551 |
| 80.962 | 133.35 | 60.325 | 59.538 | 3.25 | 496D/492A |
| 80.962 | 136.525 | 60.325 | 59.538 | 3.53 | 496D/493 |
| 80.962 | 139.992 | 80.962 | 80.134 | 5.31 | 581D/572 |
| 85.725 | 123.825 | 41.278 | 44.45 | 1.74 | L217845D/L217810 |
| 85.725 | 127 | 41.278 | 44.45 | 1.93 | L217845D/L217813 |
| 88.9 | 161.925 | 101.549 | 107.95 | 8.77 | 767D/752 |
| 92.075 | 148.43 | 57.15 | 57.942 | 3.87 | 42362D/42584 |
| 95.25 | 136.525 | 57.15 | 57.15 | 2.68 | LM119348D/LM119311 |
| 98.425 | 180.975 | 101.6 | 102.362 | 11.33 | 779D/772 |
| 101.6 | 157.162 | 80.167 | 79.375 | 5.29 | 52400D/52618 |
| 101.6 | 161.925 | 86.518 | 79.375 | 6.28 | 52400D/52638 |
| 104.775 | 180.975 | 101.6 | 102.362 | 10.68 | 782D/772 |
| 107.95 | 212.725 | 142.875 | 152.4 | 22.94 | 946D/932 |
| 114.3 | 190.5 | 98.425 | 101.6 | 11.01 | 71450D/71750 |
| 114.3 | 212.725 | 142.875 | 152.4 | 22.01 | HH224346DD/HH224310 |
| 120.65 | 174.625 | 66.678 | 68.262 | 5.82 | M224749D/M224710 |
| 127 | 196.85 | 92.075 | 92.075 | 10.66 | 67388D/67322 |
| 127 | 228.6 | 160.338 | 151.244 | 24.49 | 97500D/97900 |
| 127 | 234.95 | 139.7 | 152.4 | 25.95 | 95499D/95925 |
| 130.005 | 215.9 | 123.825 | 123.825 | 17.45 | 74510D/74850 |
| 130.175 | 215.9 | 101.6 | 101.6 | 14.97 | 74512D/74850 |
| 133.35 | 196.85 | 92.075 | 92.075 | 9.73 | 67390D/67322 |
| 136.525 | 225.425 | 120.65 | 120.65 | 19.97 | H228649D/H228610 |
| 139.7 | 200.025 | 77.788 | 75.408 | 8.13 | 48680D/48620 |
| 149.225 | 236.538 | 106.362 | 105.346 | 17.47 | 82587D/82931 |
| 149.225 | 241.3 | 106.362 | 105.346 | 19.08 | 82587D/82950 |
| 149.225 | 254 | 120.65 | 120.65 | 25.95 | 99587D/99100 |
| 152.4 | 244.475 | 87.312 | 92.075 | 14.96 | 81601D/81962 |
| 155.575 | 247.65 | 122.238 | 122.238 | 23.18 | H432549D/H432510 |
| 165.1 | 225.425 | 79.375 | 76.2 | 9.45 | 46790D/46720 |
| 174.625 | 288.925 | 123.825 | 123.825 | 31.85 | HM237542D/HM237510 |
| 177.8 | 247.65 | 90.488 | 90.488 | 13.3 | 67790D/67720 |
| 177.8 | 279.4 | 112.71 | 112.712 | 25.8 | 82680D/82620 |
| 177.8 | 288.925 | 123.825 | 123.825 | 32.59 | 94706D/94113 |
| 177.8 | 288.925 | 123.825 | 123.825 | 31.8 | HM237546D/HM237510 |
| 177.8 | 304.8 | 109.438 | 114.3 | 31.9 | EE280700D/281200 |
| 187.325 | 319.964 | 168.275 | 161.925 | 52.73 | H239649D/H239610 |
| 187.325 | 320.675 | 168.275 | 161.925 | 53.29 | H239649D/H239612 |
| 190.5 | 317.5 | 133.35 | 133.35 | 41.89 | 93751D/93125 |
| 190.5 | 368.3 | 158.75 | 152.4 | 76.87 | EE420750D/421450 |
| 199.975 | 317.5 | 133.35 | 133.35 | 40.08 | 93788D/93125 |
| 203.2 | 317.5 | 123.825 | 123.825 | 42.54 | 93800D/93125 |
| 203.2 | 317.5 | 133.35 | 133.35 | 37.25 | 93801D/93125 |
| 203.2 | 317.5 | 142.875 | 133.35 | 38.99 | 93801D/93126 |
| 203.2 | 365.049 | 158.75 | 152.4 | 70.53 | EE420800D/421437 |
| 203.275 | 368.3 | 158.75 | 152.4 | 71.12 | EE420804D/421450 |
| 206.375 | 282.575 | 87.313 | 87.312 | 16.43 | 67985D/67920 |
| 206.375 | 336.55 | 180.975 | 184.15 | 65.06 | H242649D/H242610 |
| 215.9 | 285.75 | 85.725 | 85.725 | 15.15 | LM742749D/LM742710 |
| 215.9 | 288.925 | 85.725 | 85.725 | 15.88 | LM742749D/LM742714 |
| 215.9 | 355.6 | 120.65 | 120.65 | 46.68 | EE130850D/131400 |
| 215.9 | 355.6 | 127 | 130.175 | 51.05 | 96851D/96140 |
| 219.075 | 358.775 | 196.85 | 200.025 | 81.11 | H244849D/H244810 |
| 220.662 | 314.325 | 115.888 | 115.888 | 29.07 | M244249D/M244210 |
| 225.425 | 355.6 | 120.65 | 120.65 | 43.7 | EE130887D/131400 |
| 225.425 | 355.6 | 165.1 | 165.1 | 52.19 | EE130888D/131400 |
| 228.6 | 355.6 | 120.65 | 120.65 | 43.45 | EE130900D/131400 |
| 228.6 | 355.6 | 165.1 | 165.1 | 50.4 | EE130903D/131400 |
| 228.6 | 400.05 | 158.75 | 161.925 | 81.54 | EE430901D/431575 |
| 228.6 | 425.45 | 177.8 | 165.1 | 106.49 | EE700090D/700167 |
| 228.6 | 431.8 | 158.749 | 158.75 | 102.14 | EE113090D/113170 |
| 234.95 | 327.025 | 93.662 | 93.662 | 24.86 | 8576D/8520 |
| 234.95 | 384.175 | 209.55 | 209.55 | 98.04 | H247549D/H247510 |
| 241.225 | 355.498 | 107.95 | 107.95 | 36.78 | EE127094D/127138 |
| 241.3 | 419.1 | 177.8 | 174.625 | 101.84 | EE821096D/821165 |
| 241.478 | 349.148 | 107.95 | 107.95 | 33.77 | EE127097D/127135 |
| 241.478 | 355.498 | 107.95 | 107.95 | 35.08 | EE127097D/127138 |
| 241.478 | 355.6 | 107.95 | 107.95 | 35.12 | EE127097D/127140 |
| 244.475 | 327.025 | 92.075 | 92.075 | 21.53 | LM247748D/LM247710 |
| 247.65 | 406.4 | 215.9 | 219.075 | 120.05 | HH249949D/HH249910 |
| 254 | 355.6 | 92.71 | 92.862 | 27.99 | EE171000D/171400 |
| 254 | 358.775 | 130.175 | 130.175 | 42.34 | M249748D/M249710 |
| 254 | 360 | 136.225 | 130.175 | 44.36 | M249748D/JM249712 |
| 254 | 365.049 | 92.71 | 92.862 | 30.85 | EE171000D/171436 |
| 254 | 368.3 | 92.71 | 92.862 | 32.05 | EE171000D/171450 |
| 254 | 422.275 | 152.4 | 139.7 | 81.05 | HM252343D/HM252310 |
| 254 | 431.724 | 145.258 | 139.7 | 82.79 | HM252343D/HM252315 |
| 254 | 438.15 | 165.1 | 165.1 | 105.97 | EE738101D/738172 |
| 254 | 444.5 | 133.35 | 133.35 | 84.48 | EE822101D/822175 |
| 260.35 | 365.125 | 107.95 | 107.95 | 33.76 | EE134102D/134143 |
| 260.35 | 406.4 | 155.575 | 152.4 | 121.01 | EE324103D/324160 |
| 260.35 | 419.1 | 158.75 | 155.575 | 80.7 | EE435103D/435165 |
| 260.35 | 422.275 | 152.4 | 139.7 | 76.62 | HM252347D/HM252310 |
| 260.35 | 431.724 | 145.258 | 139.7 | 79.98 | HM252347D/HM252315 |
| 260.35 | 431.724 | 148.433 | 152.4 | 81.35 | HM252348D/HM252315 |
| 260.35 | 444.5 | 196.85 | 196.85 | 119.46 | EE823103D/823175 |
| 266.7 | 355.6 | 107.95 | 109.538 | 30.19 | LM451349D/LM451310 |
| 266.7 | 393.7 | 130.175 | 130.175 | 49.03 | EE275106D/275155 |
| 266.7 | 403.225 | 122.24 | 130.175 | 51.81 | EE275106D/275158 |
| 266.7 | 406.4 | 122.24 | 130.175 | 53.51 | EE275106D/275160 |
| 266.7 | 488.95 | 228.6 | 238.125 | 184.42 | EE295106D/295193 |
| 269.875 | 381 | 136.525 | 136.525 | 49.93 | M252349D/M252310 |
| 276.225 | 381 | 95.25 | 88.9 | 29.21 | 89108D/89148 |
| 276.225 | 381 | 111.125 | 88.9 | 32.47 | 89108D/89150 |
| 276.225 | 393.7 | 130.175 | 130.175 | 49.79 | EE275109D/275155 |
| 276.225 | 403.225 | 122.24 | 130.175 | 51.43 | EE275109D/275158 |
| 279.4 | 457.2 | 244.475 | 244.475 | 169.04 | HH255149D/HH255110 |
| 279.4 | 469.9 | 169.862 | 166.688 | 114.93 | EE722111D/722185 |
| 279.578 | 380.898 | 117.475 | 117.475 | 40.56 | LM654644D/LM654610 |
| 279.578 | 381 | 95.25 | 88.9 | 28.21 | 89111D/89148 |
| 279.578 | 381 | 111.125 | 88.9 | 31.47 | 89111D/89150 |
| 280 | 409.981 | 206.375 | 206.375 | 83.02 | EE128114D/128161 |
| 288.925 | 406.4 | 144.462 | 144.462 | 60.77 | M255449D/M255410 |
| 292.1 | 422.275 | 130.175 | 130.175 | 61.13 | EE330116D/330166 |
| 292.1 | 469.9 | 138.928 | 142.875 | 88.34 | EE921150D/921850 |
| 292.1 | 476.25 | 138.928 | 142.875 | 92.56 | EE921150D/921875 |
| 298.45 | 438.048 | 131.762 | 131.762 | 64.02 | EE329118D/329172 |
| 298.45 | 444.5 | 111.125 | 107.95 | 54.57 | EE291176D/291750 |
| 299.975 | 439.948 | 133.35 | 134.938 | 67.14 | EE129119D/129174 |
| 300 | 460 | 160 | 160 | 104.21 | NP741064/NP034947 |
| 300.038 | 422.275 | 150.812 | 150.812 | 67.5 | HM256849DA/HM256810 |
| 300.038 | 422.275 | 150.812 | 150.812 | 69.57 | HM256849D/HM256810 |
| 303.212 | 495.3 | 263.525 | 263.525 | 213.93 | HH258249D/HH258210 |
| 304.648 | 438.048 | 131.762 | 131.762 | 64.3 | EE329117D/329172 |
| 304.648 | 438.048 | 133.35 | 134.938 | 60.89 | EE129121D/129172 |
| 304.648 | 438.048 | 138.112 | 128.588 | 64.1 | M757447D/M757410 |
| 304.8 | 419.1 | 130.175 | 130.175 | 52.61 | M257149D/M257110 |
| 304.8 | 444.5 | 111.125 | 107.95 | 52.03 | EE291200D/291750 |
| 304.8 | 444.5 | 111.125 | 107.95 | 55.22 | EE291200D/291749 |
| 304.8 | 495.3 | 171.45 | 165.1 | 125.31 | EE724121D/724195 |
| 304.8 | 501.65 | 161.925 | 161.925 | 130.56 | HM258949D/HM258910 |
| 304.8 | 558.8 | 285.75 | 285.75 | 296.99 | EE790119D/790221 |
| 304.902 | 412.648 | 128.588 | 128.588 | 50.79 | M257248D/M257210 |
| 304.902 | 438.048 | 196.85 | 212.725 | 87.48 | EE129124D/129172 |
| 305 | 438.048 | 133.35 | 134.938 | 60.71 | EE129123D/129172 |
| 305 | 559.867 | 170.434 | 169.977 | 181.92 | HM959649D/HM959618 |
| 305.054 | 499.948 | 200 | 200 | 152.93 | HM858548D/HM858511 |
| 317.5 | 422.275 | 128.588 | 128.588 | 48.23 | LM258649D/LM258610 |
| 317.5 | 447.675 | 158.75 | 158.75 | 82.41 | HM259049D/HM259010 |
| 330.2 | 414.338 | 76.2 | 76.2 | 23.77 | L259749D/L259710 |
| 330.2 | 482.6 | 152.4 | 147.638 | 83.06 | EE526131D/526190 |
| 330.302 | 438.023 | 120.65 | 114.3 | 46.18 | EE138131D/138172 |
| 333.375 | 469.9 | 166.688 | 166.688 | 95.39 | HM261049D/HM261010 |
| 340 | 460 | 118.364 | 118 | 60.72 | JL163142D/JL163115 |
| 342.9 | 533.4 | 139.7 | 146.05 | 113.46 | EE971355D/972100 |
| 343.052 | 457.098 | 120.65 | 120.65 | 52.3 | EE133136D/133180 |
| 343.052 | 457.098 | 122.238 | 122.238 | 51.91 | LM761649D/LM761610 |
| 343.052 | 457.098 | 123.825 | 122.238 | 55.81 | LM961548D/LM961511 |
| 346.075 | 469.9 | 104.775 | 95.25 | 45.81 | EE161362D/161850 |
| 346.075 | 482.6 | 104.775 | 95.25 | 51.47 | EE161362D/161900 |
| 346.075 | 488.95 | 104.775 | 95.25 | 54.35 | EE161362D/161925 |
| 346.075 | 488.95 | 174.625 | 174.625 | 110.26 | HM262749D/HM262710 |
| 347.662 | 469.9 | 138.112 | 138.112 | 69.19 | M262449D/M262410 |
| 355.6 | 444.5 | 112.712 | 114.3 | 40.8 | L163149D/L163110 |
| 355.6 | 457.2 | 120.65 | 120.65 | 50.4 | LM263149D/LM263110 |
| 355.6 | 458.47 | 120.65 | 120.65 | 51.16 | LM263149D/LM263112 |
| 355.6 | 482.6 | 133.35 | 128.588 | 66.45 | LM763449D/LM763410 |
| 355.6 | 488.95 | 153.988 | 153.988 | 87.63 | M263349D/M263310 |
| 355.6 | 501.65 | 127 | 111.125 | 70.62 | EE231401D/231975 |
| 355.6 | 514.35 | 127 | 111.125 | 78.56 | EE231401D/232025 |
| 356.387 | 482.6 | 104.775 | 101.6 | 48.59 | EE161403D/161900 |
| 368.3 | 523.875 | 185.738 | 185.738 | 131.8 | HM265049D/HM265010 |
| 368.3 | 596.9 | 165.1 | 158.75 | 165.6 | EE181454D/182350 |
| 368.3 | 609.6 | 254 | 279.4 | 301 | EE321146D/321240 |
| 368.3 | 622.3 | 254 | 279.4 | 332.56 | EE321146D/321245 |
| 374.574 | 546.1 | 193.675 | 193.675 | 159.35 | HM266445D/HM266410 |
| 374.65 | 501.65 | 127 | 117.475 | 62.17 | EE231475D/231975 |
| 374.65 | 501.65 | 130.175 | 120.65 | 66.95 | LM765149D/LM765110 |
| 374.65 | 514.35 | 127 | 117.475 | 70.11 | EE231475D/232025 |
| 384.175 | 546.1 | 193.675 | 193.675 | 154.73 | HM266449D/HM266410 |
| 384.175 | 546.1 | 193.675 | 193.675 | 147.14 | HM266448D/HM266410 |
| 393.7 | 546.1 | 138.112 | 138.112 | 98.85 | LM767745D/LM767710 |
| 393.7 | 558.8 | 119.062 | 120.65 | 95.27 | EE234157D/234220 |
| 406.4 | 546.1 | 87.312 | 138.112 | 94.87 | LM767748D/LM767710 |
| 406.4 | 546.1 | 141.288 | 120.65 | 82.24 | EE234161D/234215 |
| 406.4 | 558.8 | 119.062 | 120.65 | 81.08 | EE234161D/234220 |
| 406.4 | 574.675 | 114.3 | 114.3 | 97.72 | EE285161D/285226 |
| 406.4 | 590.55 | 193.675 | 193.675 | 180.03 | EE833161XD/833232 |
| 406.4 | 609.6 | 157.162 | 149.225 | 148.41 | EE911603D/912400 |
| 409.575 | 546.1 | 161.925 | 161.925 | 105.61 | M667947D/M667911 |
| 415.925 | 590.55 | 209.55 | 209.55 | 189.52 | M268748D/M268710 |
| 419.227 | 736.448 | 406.4 | 406.4 | 770.95 | EE323166D/323290 |
| 425.45 | 685.698 | 253.873 | 253.873 | 376.93 | EE328167D/328269 |
| 431.8 | 571.5 | 133.35 | 130.175 | 93.15 | EE239171D/239225 |
| 431.8 | 571.5 | 133.35 | 130.175 | 93.62 | EE239173D/239225 |
| 431.8 | 635 | 173.038 | 173.038 | 187.65 | EE931170D/931250 |
| 431.8 | 723.9 | 419.1 | 419.1 | 725.86 | NP710048/NP102973 |
| 431.902 | 685.698 | 253.873 | 253.873 | 368.28 | EE328172D/328269 |
| 431.902 | 685.698 | 330.2 | 330.2 | 487.03 | EE650171D/650270 |
| 432.003 | 609.524 | 152.4 | 152.4 | 138.77 | EE736173D/736238 |
| 447.675 | 635 | 223.838 | 223.838 | 240.64 | M270749D/M270710 |
| 449.948 | 594.949 | 178 | 178 | 137.77 | M270449DA/M270410 |
| 456.794 | 761.873 | 254 | 254 | 463.65 | EE425176D/425299 |
| 457.073 | 730.148 | 203.2 | 196.85 | 331.41 | EE671798D/672873 |
| 457.073 | 749.3 | 419.1 | 412.75 | 769.11 | EE925179D/925295 |
| 457.2 | 596.9 | 133.35 | 130.175 | 92.2 | EE244181D/244235 |
| 457.2 | 596.9 | 136.525 | 133.35 | 95 | L770849D/L770810 |
| 457.2 | 660.4 | 155.575 | 155.575 | 173.98 | EE737179D/737260 |
| 457.2 | 761.873 | 215.9 | 209.55 | 413.25 | EE423181D/423300 |
| 457.2 | 812.8 | 342.9 | 342.9 | 741.07 | EE525183D/525320 |
| 457.2 | 863.498 | 368.3 | 368.3 | 978.97 | EE480181D/480340 |
| 464 | 615 | 150 | 136 | 116.36 | NP609202/NP357825 |
| 479.425 | 679.45 | 238.125 | 238.125 | 286.5 | M272749D/M272710 |
| 482.6 | 615.95 | 158.75 | 158.75 | 115.1 | LM272249D/LM272210 |
| 488.95 | 660.4 | 171.45 | 174.625 | 168.17 | EE640193D/640260 |
| 489.026 | 634.873 | 152.4 | 152.4 | 126.03 | EE243193D/243250 |
| 500 | 660 | 160 | 160 | 144.99 | NP025753/NP652808 |
| 501.65 | 711.2 | 250.825 | 250.825 | 339.24 | M274149D/M274110 |
| 505.181 | 838.2 | 266.7 | 266.7 | 600.54 | EE426198D/426330 |
| 508 | 762 | 219.075 | 219.075 | 345.54 | EE531201D/531300 |
| 514.35 | 673.1 | 203.2 | 203.2 | 321.7 | LM274449D/LM274410 |
| 519.112 | 736.6 | 258.762 | 258.762 | 383.08 | M275349D/M275310 |
| 519.112 | 736.6 | 258.762 | 258.762 | 381.64 | M275348D/M275310 |
| 536.575 | 761.873 | 269.875 | 269.875 | 415.94 | M276449D/M276410 |
| 536.575 | 761.873 | 269.875 | 269.875 | 415.91 | M276448D/M276410 |
| 539.75 | 784.225 | 165.1 | 161.925 | 240.64 | EE522126D/523087 |
| 558.673 | 901.573 | 457.2 | 442.912 | 1170.74 | EE546220D/546355 |
| 558.8 | 660.4 | 95.25 | 92.075 | 54.75 | LL876449D/LL876410 |
| 558.8 | 736.6 | 155.575 | 155.575 | 177.96 | EE843221D/843290 |
| 558.8 | 736.6 | 196.85 | 196.85 | 237.01 | LM377449D/LM377410 |
| 571.5 | 812.8 | 285.75 | 285.75 | 489.64 | M278749D/M278710 |
| 585.788 | 771.525 | 230.188 | 230.188 | 302.98 | LM278849D/LM278810 |
| 585.788 | 771.525 | 230.188 | 230.188 | 302.76 | LM278848D/LM278810 |
| 600 | 1170 | 510 | 510 | 2575.44 | NP726553/NP137813 |
| 609.6 | 787.4 | 171.45 | 171.45 | 217.3 | EE649241D/649310 |
| 609.6 | 863.6 | 317.5 | 317.5 | 608.49 | M280349D/M280310 |
| 630 | 1030 | 315 | 315 | 1060.79 | NP689200/NP360973 |
| 635 | 901.7 | 317.5 | 317.5 | 686.09 | M281049D/M281010 |
| 635 | 939.8 | 304.8 | 304.8 | 738.59 | LM881245D/LM881214 |
| 647.7 | 1028.7 | 279.4 | 273.05 | 863.66 | EE424257D/424405 |
| 660.4 | 812.8 | 176.212 | 176.212 | 206.17 | L281149D/L281110 |
| 660.4 | 1066.8 | 321.47 | 311.942 | 1101.53 | EE428262D/428420 |
| 660.4 | 1104.9 | 571.5 | 571.5 | 2038.55 | EE627260D/627435 |
| 682.625 | 965.2 | 338.138 | 338.138 | 843.1 | M282249D/M282210 |
| 708.025 | 930.275 | 273.05 | 273.05 | 519.26 | LM282549D/LM282510 |
| 711.2 | 914.4 | 149.225 | 149.225 | 247.94 | EE755281D/755360 |
| 730.25 | 1035.05 | 365.125 | 365.125 | 1031.1 | M283449D/M283410 |
| 749.3 | 1066.8 | 361.95 | 349.25 | 1054.26 | EE325296D/325420 |
| 749.3 | 1181.1 | 355.6 | 355.6 | 1449.65 | EE690296D/690465 |
| 762 | 1079.5 | 381 | 381 | 1176.35 | M284249D/M284210 |
| 779.925 | 1219.873 | 406.674 | 406.674 | 1875.04 | EE631307D/631484 |
| 787.4 | 1219.2 | 406.4 | 406.4 | 1758.2 | EE631311D/631480 |
| 825.5 | 1168.4 | 409.575 | 409.575 | 1478.41 | M285848D/M285810 |
| 840 | 1040 | 180 | 170 | 315.36 | NP385417/NP439444 |
| 863.6 | 1130.3 | 323.85 | 323.85 | 897.71 | LM286249D/LM286210 |
| 863.6 | 1219.2 | 438.15 | 425.45 | 1653.01 | EE547341D/547480 |
| 901.7 | 1295.4 | 450.85 | 438.15 | 2034.61 | EE634356D/634510 |
| 938.212 | 1270 | 400.05 | 400.05 | 1544.7 | LM287649D/LM287610 |
| 939.8 | 1333.5 | 463.55 | 463.55 | 2190.95 | LM287849D/LM287810 |
| 939.8 | 1333.5 | 463.55 | 463.55 | 2183.29 | LM287849AD/LM287810 |
| 1200.15 | 1593.85 | 482.6 | 482.6 | 2744.57 | LM288949D/LM288910 |
